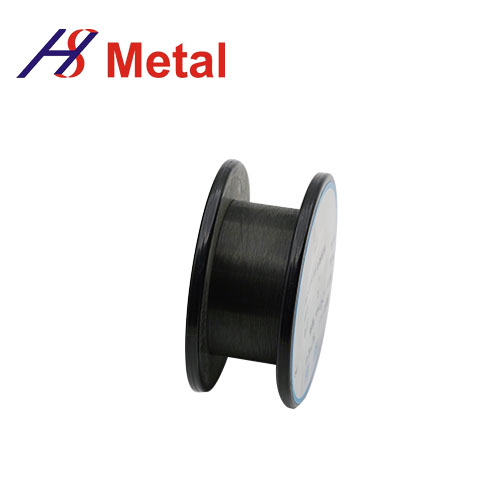

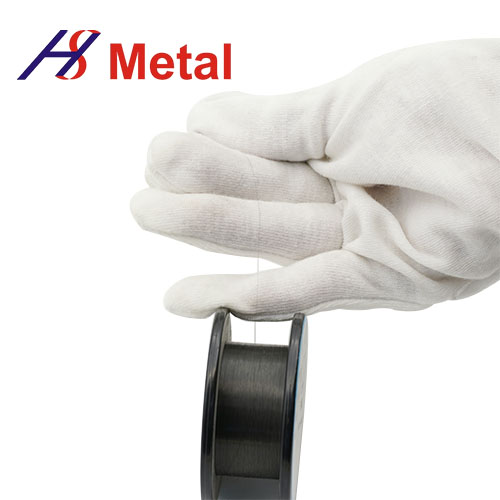

What is pure molybdenum wire?

Pure molybdenum wire is a special metal filament made of ultra-high purity molybdenum (Mo ≥ 99.95%) as the main component through powder metallurgy process (including pressing, sintering, forging and multi-pass drawing). This material exhibits excellent structural stability in high temperature environment, and has excellent electrical and thermal conductivity and outstanding corrosion resistance. It is an indispensable key functional material in the fields of modern industrial high temperature, vacuum and electronic technology.

1. Preparation process of pure molybdenum wire

Pressing: Press molybdenum powder into rod blanks.

Sintering: High temperature sintering in hydrogen atmosphere.

Forging and rolling: Wire blanks are made by hot forging and hot rolling.

Wire drawing: After multiple cold drawing, the molybdenum wire of the required diameter is finally obtained.

2. Performance advantages of pure molybdenum wire

High melting point: The melting point is as high as 2623°C, which is suitable for high temperature working environment.

High strength: It can maintain good mechanical strength at room temperature and high temperature.

Excellent electrical and thermal conductivity: It has high electrical and thermal conductivity and is suitable for conductor or heating wire applications.

Vacuum stability: The gasification rate is low in a high vacuum environment and it is not easy to cause pollution.

Corrosion resistance: It has strong tolerance to most acids, alkalis and molten metals.

High dimensional accuracy and surface quality: It can be precisely drawn to a diameter of less than 0.01mm, with high surface finish, meeting the requirements of precision equipment.

3. Main application areas of pure molybdenum wire

Electric light source industry: used as support wire, electrode wire, filament bracket, electrode lead for incandescent lamps, halogen lamps, HID lamps.

Vacuum electronic technology: used for electrodes, leads, filament frames, cathode supports and high-temperature electrode materials for electron tubes and microwave devices.

Electric spark wire cutting (EDM): especially suitable for medium-speed wire cutting and fast-speed wire cutting processing, relying on its good conductivity and wear resistance.

Heating element: used as heating element or support member for high-temperature vacuum furnaces, hydrogen furnaces, crystal growth furnaces and other equipment.

Semiconductor and coating equipment: used as heating source or structural support in vacuum coating and ion implantation equipment.

Medical and aerospace industry: used as high-temperature resistant and high-strength wire in medical equipment, nuclear industry and aerospace parts.
